Smart Teaching Pendant
Innovative drag-to-teach handle with one-click weld seam generation and wire feed control. Reduces programming time by 85%.
PORTABLE WELDING AUTOMATION
All-in-One Mobile Cobot Welding Cell
A complete, plug-and-play automated welding station designed for high-mix, low-volume production. No coding required.
- 0-Threshold Operation
- 16 TUV Safety Functions
- Water-Cooled 500A Welder
SYSTEM COMPONENTS & FEATURES
Everything needed for a practical welding cell.
An integrated workstation combines guided programming, a collaborative robot, welding power source, and mobile deployment in one compact system.

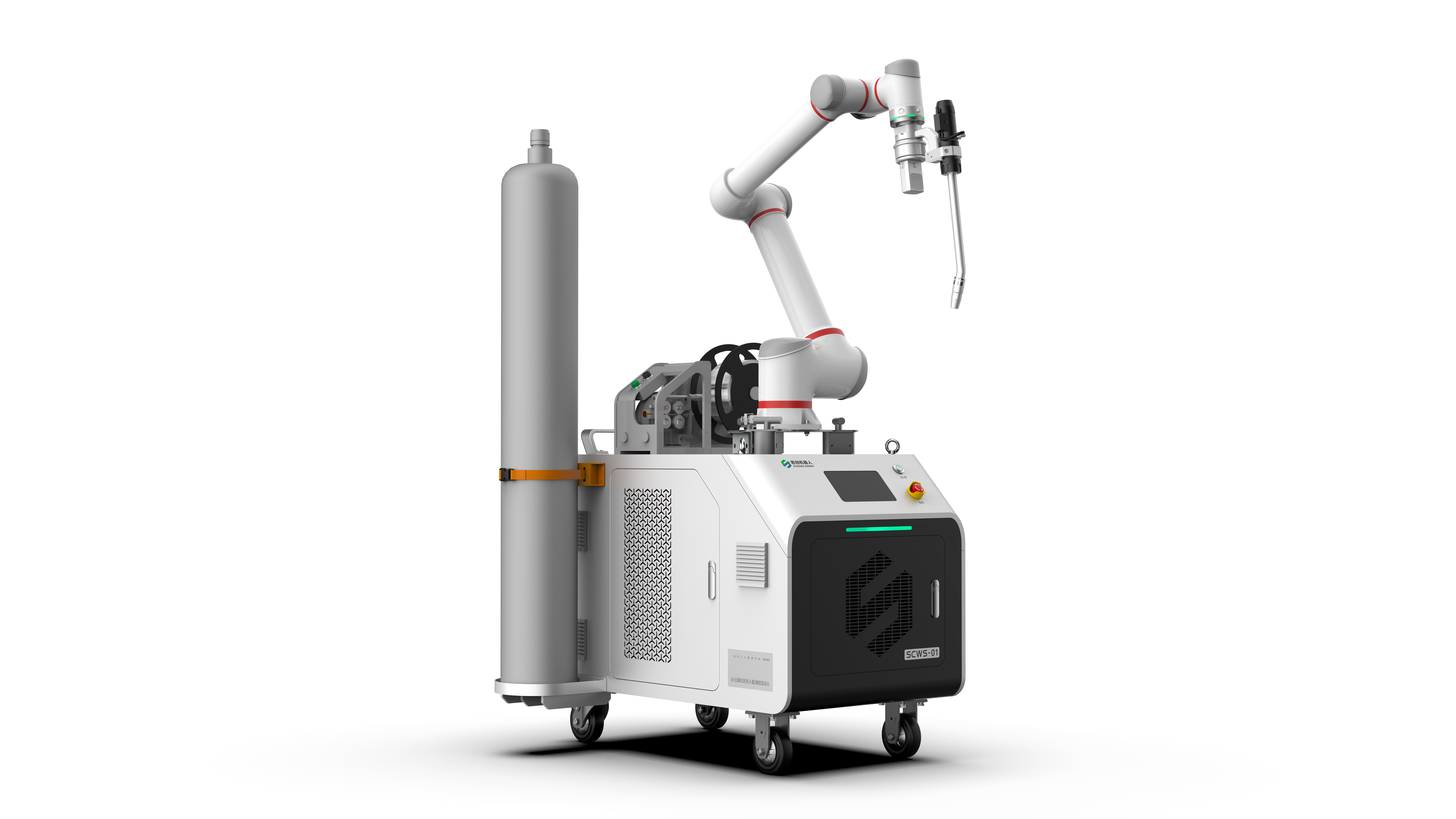

High-Performance Cobot Arm
Powered by DUCO GCR-series cobots. Up to 10kg payload and 1300mm reach, featuring ±0.03mm repeatability and ESD antistatic body.
Heavy-Duty Welding Power Source
Integrated Aotai NBC-500RP-PLUS digital pulse welder (500A, 100% duty cycle) with built-in water cooling tank and wire feeder.
Compact Mobility
Customized mobile cart allows you to move the automation directly to heavy workpieces, saving floor space.
TECHNICAL SPECIFICATIONS
Configure the cell around your welding requirements.
Select the cobot reach and payload that best matches your workpiece, torch package, and fixture arrangement.
Cobot Options
| Model | Payload | Reach | Repeatability |
|---|---|---|---|
| GCR5-910-W | 5kg | 917mm | ±0.02mm |
| GCR10-1300-W | 10kg | 1300mm | ±0.03mm |
Welder System
- Model
- Aotai NBC-500RP-PLUS
- Rated Output
- 500A, 100% Duty Cycle
- Cooling
- Integrated Water Tank
- Station Dimensions
- Approx. 1200 x 800 x 1200 mm
REQUEST SOLUTION & PRICING
Tell us about your welding project.
Share your material, welding process, and production requirements so we can recommend the right mobile cell configuration.
Prefer a full project brief? Contact WeldVanta →
